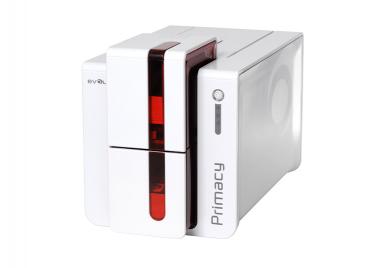

Máy in thẻ nhựa primacy - module mã hóa thẻ thông minh/ thẻ không tiếp xúc

Tình trạng: Hết hàng

Liên hệ

Mô tả:

Đặt mua qua hotline

024.35526973 - 090.2268611

Chia sẻ:

Mô tả sản phẩm

General features

Single-sided or dual-sided printing module, edge to edge printing
Color dye sublimation , monochrome thermal transfer
300 dpi print head (11.8 dots/mm)
16MB Memory (RAM)

Printing performances

Single side :
- Color (YMCKO) : 190 - 210 cards /hour
- Monochrome : 600 - 850 cards /hour
Dual side (YMCKO-K) : 140 cards /hour

Card management and specifications

Feeder capacity: 100 cards (0.76 mm - 30 mil)
Output hopper capacity: 100 cards (0.76 mm - 30 mil)
Reject tray: 30 cards (0.76 mm - 30 mil)
Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25mm / 10 mil cards for monochrome printing only)
Types of cards: All PVC, Composite PVC cards, PET, ABS(1) and special varnished(1) cards
Card format ISO CR80 - ISO 7810 (53.98mm x 85.60 mm)

(1) Under specific conditions

Evolis High Trust ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust ribbons.

Automatic identification and setting
Delivered in a drop-in cassette for easy handling
Ribbon saver for monochrome printing

Interfaces

USB 1.1 (supports 2.0)
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Display

Printer LEDs
Graphical notifications(2) from the printer: Empty input hopper alert, cleaning alerts, empty/low level ribbon alert

(2) Depends on the Windows version

Software

Delivered with Evolis Premium Suite for Windows:
- Printer driver
- Evolis Print Center for printer management and settings
- Printer Manager for bi-directional graphical notification(3)
- Compatible with Windows: XP SP3; Vista 32/64, W7 32/64(4)
Delivered with a driver for Mac OS X (from 10.5 onwards)
Other OS: Linux upon request

(3) Requires the .net 4.0 client profile version
(4) For older Windows versions, you can use the printer through the driver only (no Print Center, no Printer Manager)

Warranty

3-year warranty (printer and printhead)(5)

(5) Warranty subject to observance of specific conditions and use of Evolis High Trust ribbons

Size and weight

Size:
- Height 247mm (9.72") x length 205mm (8.07") x width 381 mm (14.99")
- Height 247mm (9.72") x length 205mm (8.07") x width 481 mm (18.93") (With reject tray)
Weight: 4.02 kg (8.86 lbs)

Dimensions and weight of the machine when packed :

Size (H x l x W) : 485 x 300 x 390 mm
Weight : 5.290kg

Sound (Evaluated according to the ISO 7779 standard)

Sound pressure level, LpAm, measure at the operator position (colour mode YMCKO) :

When operating: 48dB (A)
In sleep mode: background noise level

Safety

Slot for Kensington security lock
Data encryption for magnetic encoding

Packaging content

Printer
CD-ROM with printer drivers, user manuals
Cleaning kit
USB cable
Reject tray
Power supply and cord

Options & Accessories

Colors available : Fire Red & Brilliant Blue
Upgrade kit for dual-sided printing
Encoding options can be combined. Upgrade can be carried out on-site, by adding new modules: Magnetic stripe encoder, smart contact station, smart encoding unit, contactless encoding unit

Environmental features, certifications and statement of compliance
